ML Assessment

assessment.uncertainty module

About this module

This demonstration guides you through the process of using ValidPath to for performance evaluation of ML models. This is enabled using the get_report method of the UncertaintyAnalysis class in the ValidPath. The input to this method are the probability results of the ML model as well as the truth values. The output of this method include:

Confusion Matrix

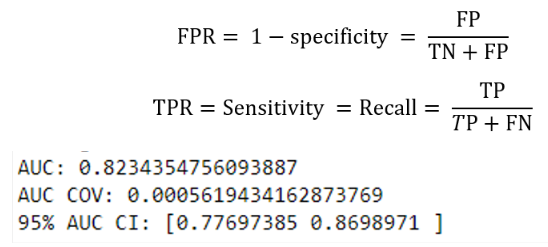

_images/assessment6.PNG

For the confidence interval calculation, we first define J= TP/(TP+FN+FP) , and computed its 95% CI [JL, JU] based on the binomial distribution. Then because F1= 2J/(1+J) , the 95% CI of F1 is [2JL/(1+JL), 2JU/(1+JU)].

Loading Required Packages

This step involves importing various Python modules that are needed for our analysis.

import numpy as np
import pandas as pd
from assessment.uncertainty import Uncertainty_Analysis
UncertaintyAnalysis = Uncertainty_Analysis()

Generate Results

Having the output of the binary classification results, we can now generate the performance results. In order to generate the annotation files, we can use the get_report method of the UncertaintyAnalysis class.

UncertaintyAnalysis. get_report(y_pred , y_truth) → Array
Receive the classification probabilities and the truth and generate the results.
Parameters:
        y_pred (arr) – prediction results (probabilities)
        y_truth (arr) – truth
Returns:
        Array – the classification report

You can run the following code to generate classification report:

import numpy as np
import pandas as pd
from assessment.uncertainty import Uncertainty_Analysis
UncertaintyAnalysis = Uncertainty_Analysis()
xls_file = "C:/Results/ResultsExample.xlsx"
UncertaintyAnalysis.perform_Bootstrap= True
UncertaintyAnalysis.plot_roc= True
UncertaintyAnalysis.perform_Delong= True
UncertaintyAnalysis.tag = “TEST”
#loading file tnto dataframe
df = pd.read_excel(xls_file)
#define two list to save values
y_pred=[]
y_truth= []
#extraction columns values
for i in df.values:
        y_truth.append(i[0])
        y_pred.append(i[1])
#convert list to ndarray
y_pred = np.array(y_pred)
y_truth = np.array(y_truth)
Results = UncertaintyAnalysis.get_report(y_pred , y_truth)

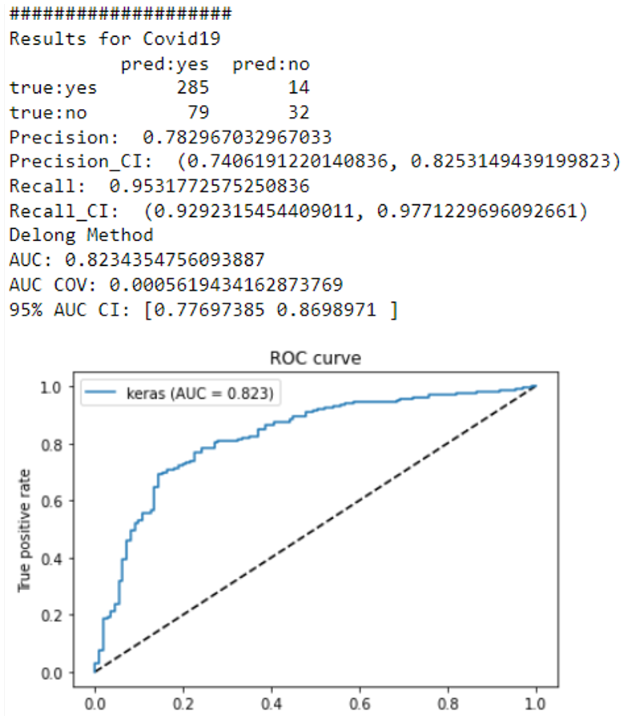

After running the code and provide the input data, you will see the performance report like the following:

_images/assessment7.PNG
