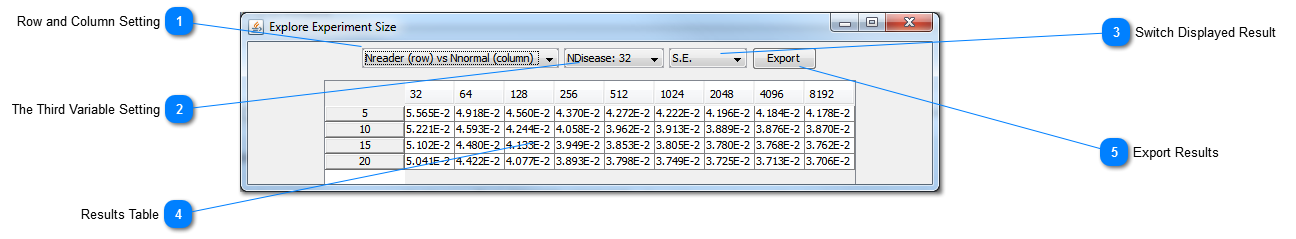

3.1.4.1 Explore Experiment Size

This window shows analyses results for different sizes MRMC studies base on components of variance from statistical analysis. This feature could analyze different size of studies (reader size = [5, 10, 15, 20]; case size = [32, 64, 128, 256, 512, 1024, 2048, 4096, 8192]). It can help user to have a base idea about what study size they need to reach their ideal variance.
Note: All analyses in this feature assume the studys are fully-crossed and paired between two modalities.
3.1.4.1 Explore Experiment Size
1

Row and Column Setting

1. Row and Column Setting
Chooses Results Table row and column combination.
Row
Column
Nreader
Nnormal
Nreader
Ndisease
Nnormal
Ndisease
2

The Third Variable Setting

2. The Third Variable Setting
Sets the size for the third variable, which is not in the Results Table.
3

Switch Displayed Result

3. Switch Displayed Result
Chooses one AUC characteristic to be estimated and displayed (Standard error or BDG power).
4

Results Table

4. Results Table
Analysis resutls for different study sizes.
5

Export Results

5. Export Results
Export current Results Table to file.
